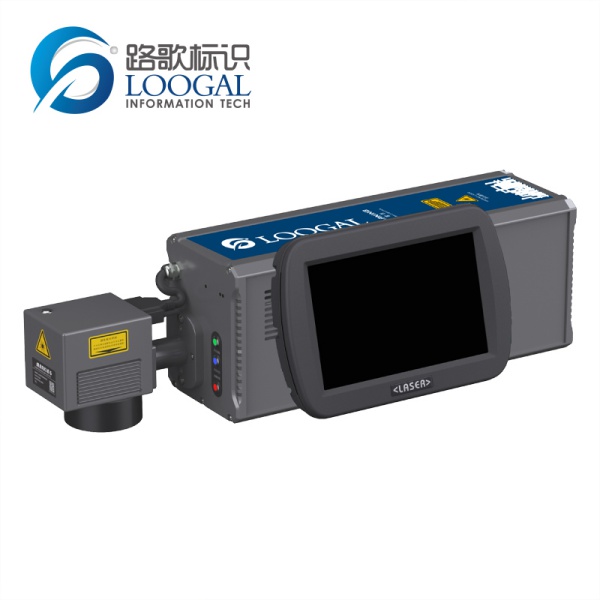

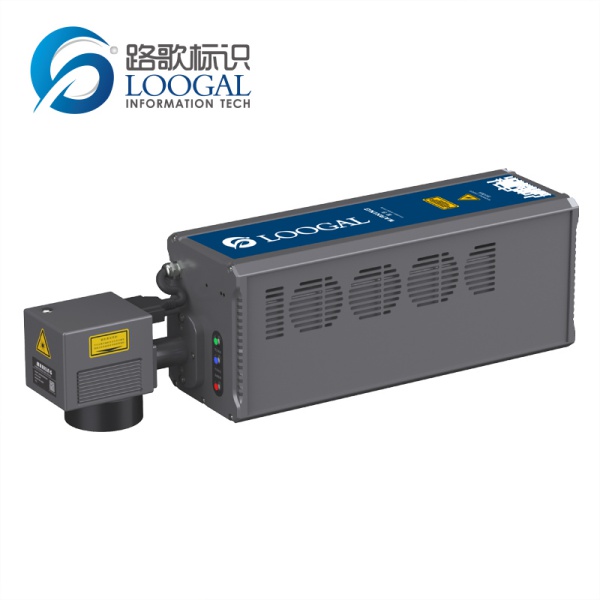

Gainlaser UV 3 / 5 / 10W series printer

ENDLESS POSSIBILITIES - It can meet your development needs and easily update your marking machine power without changing the whole system.
COMMUNICATION SOFTWARE - Carry out data communication through serial port or network port, and bring its own single machine and dual machine coding software.
VISUAL CULLING - With its own visual communication protocol, users can choose this function for seamless integration.
REMOTE OPERATION - It can be linked to the host computer through Ethernet to realize remote operation in different places.
PROTECTION GRADE - The overall protection grade of the controller reaches IP55.

Product Description


Machine material	All aluminum sandblasting oxidation
Laser	The service life is more than 20000-30000 hours
Laser wavelength	355nm
output power	UV-3W ≥3.5W; UV-5W ≥5.5W; UV-10W ≥11W
Marking speed	≤12000mm/s
controller	10.2 inch touch controller

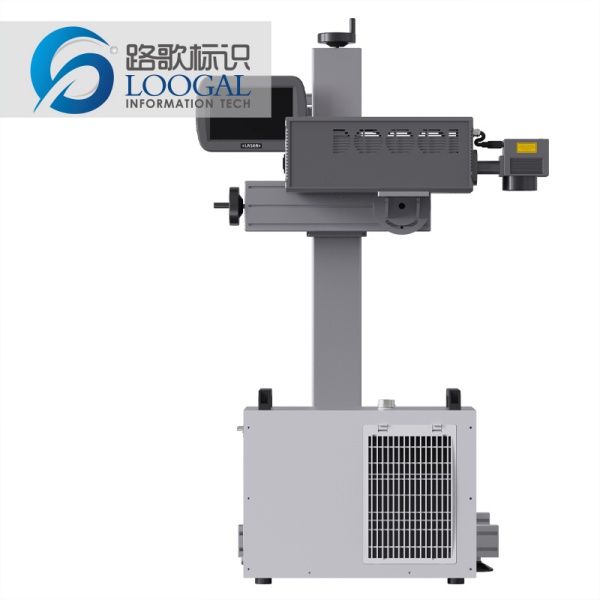

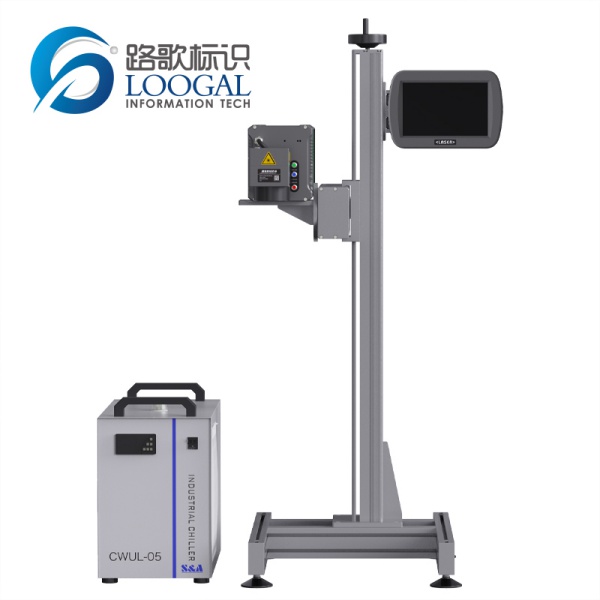

Cooling system	Water cooling (with chiller)
Focus lens	210mm
Min. linewidth	0.01mm
Repetition accuracy	0.001mm
Marking range	110mm×110mm(optinal)
Positioning mode	Blue light indication
Number of rows	Any line within the marking range
Production line speed	0~130m/min (depending on the material)
Multilingual	English, Spanish, German, Chinese, Russian, Arabic, etc
jurisdiction	Multi user management authority
operating system	Linux
Printing mode	Static, analog, encoder
Reserved signal	Start, print status, finish, error
data protection	With power failure data protection energy
monitor	Provide overspeed alarm function
De crossing	Automatic removal of intersections
Coding software	Single and double machine code sending
Support Font	Support standard fonts of Chinese , English , Digits and traditional Chinese
file format	BMP/DXF/HPGL/JPEG/PLT
barcode	CODE39、CODE128、CODE126、QR
Power Supply	220V/50HZ
Power consumption	800W
Net weight of machine	Printer: 13kg / Brackets: 30kg
Overall dimension	670mm160mm190mm
Environment requirement	External temperature0℃－45℃; humidity≤95
